OPEN CORE

Source-Code publicly available

CLOUD READY 4 AWS

Durable low-maintenance backend with

Lambda functions, DynamoDB and CLI scripts available

SIMPLE SETUP

Flash firmware & Configure parameter via Serial

QUALITY

Solid base hardware from WAVESHARE

VERSATILE VALUE

Useful for many applications

Backup Process Support

A key responsibility of operating IT services is to ensure backups are properly performed (beside testing regularily the restore process). Especially understaffed IT teams most likely suffer from information overload (mails, dashboards, mobile notifications, etc.) where critical information can simply be overlooked. mobo supports here as an independent gadget aiming for disrupting the regular cognitive overload to shift attention.

Back to top

Installation

  1. Organize Waveshare ESP32-S3 1.75inch AMOLED Round Touch Display Development Board with Case

    Order hardware from Amazon

  2. Download and flash firmware via Arduino Studio (Will be available soon)

    Refer to Source Code for details

  3. Configure required parameters via serial at baudrate 115200

    > AUTH BackupBuddyAdmin
    > PUT wifi-ssid GL-MT6000
    > PUT wifi-password *****
    > PUT ntp-server-dn at.pool.ntp.org
    > PUT aws-lamdba-dn ozi5ej.lambda-url.eu-central-1.on.aws
    > PUT aws-region eu-central-1
    > PUT aws-access-key AKIAVL
    > PUT aws-secret-key *****
    > QUIT

    Restart mobo by unplug and replug

  4. Setup AWS Infrastructure and instrument applications with reporting routine (Will be documented soon)

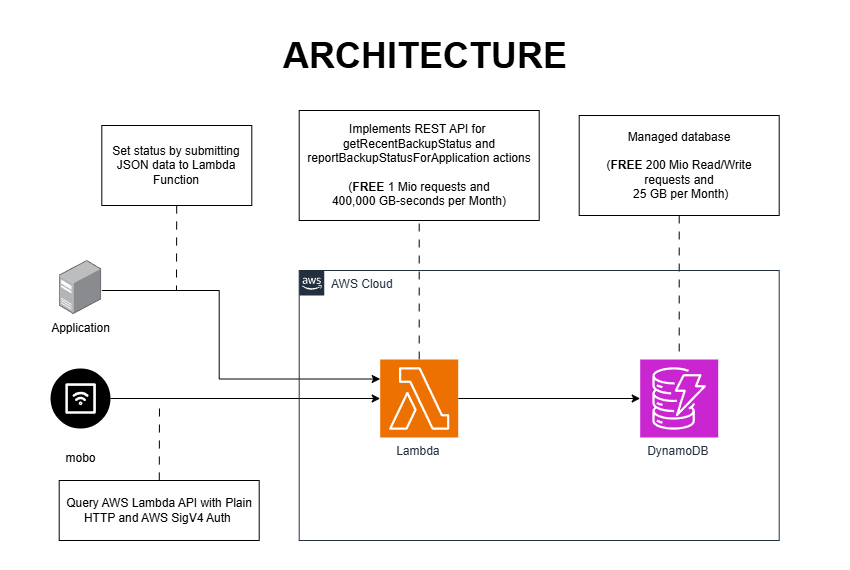

Architecture



Behaviour

mobo checks daily if the configured applications report a valid status like SKIPPED or SUCCESS.

Refer to Source Code for details

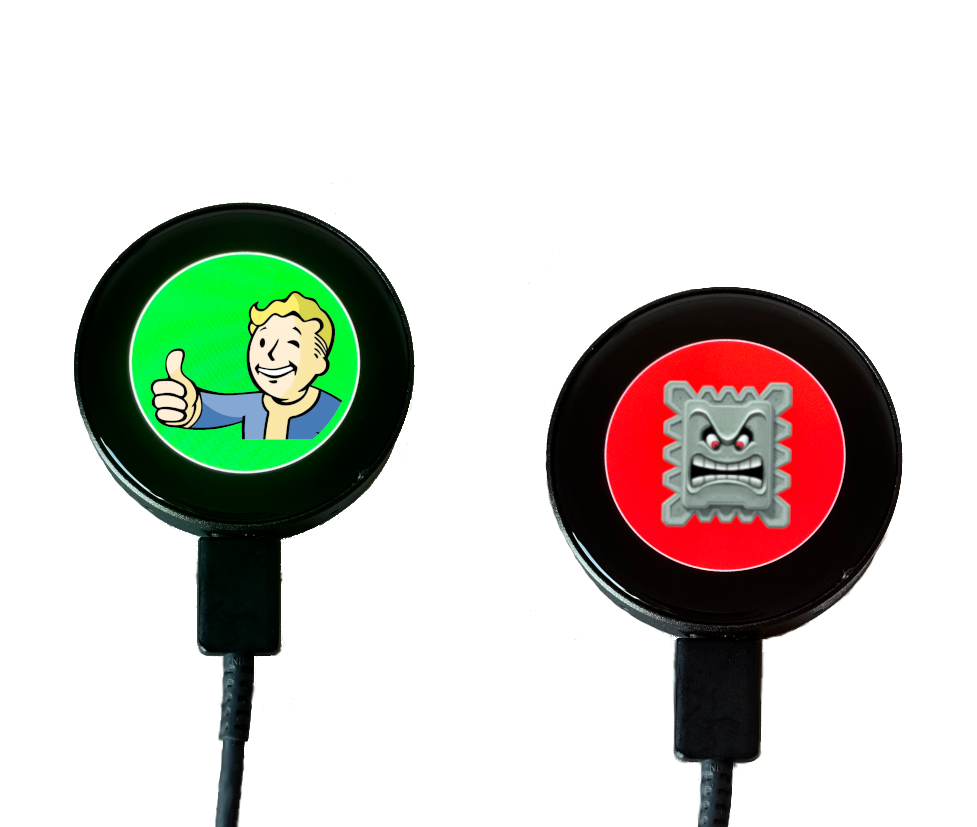

Customizable Skins

Coming soon...

(Examples include pictures of third parties which are referenced in "Citation and Attribution")
